Firecrest Pro 100x150mm ND Grad Filters
Firecrest Pro 100x150mm ND Grad Filters
The Firecrest Pro, builds on the history and success of the Firecrest Brand.
Our filters are manufactured using a rare earth metal coating, which is applied directly onto the glass using our advanced multi-coating technology. This is then bonded between further layers of the finest Schott Superwhite optical glass to provide industry leading scratch resistance and longevity.
For complete light leakage protection, a component on blackout edging is applied to completely alleviate the risk of light leak that can occur through unprotected filter edges.
The Firecrest Pro 2mm range is available in 100x100mm 2mm Standard NDs and 100x150mm 2mm Graduated NDs.
Firecrest Pro is rated for wider focal lengths up to 100mm. It is ideally suited to landscape photography. For photographers that need a longer focal length, please see Firecrest Ultra which is rated for extreme megapixel sensors and long focal lengths
Soft Edge graduated filters transition gradually in density from the top of the filter toward the center, and although there is a horizon line, it is subtle. This allows for horizon transitions to be more easily hidden in a scene, especially with an undulating horizon line such as mountains, buildings or trees. Typically graduated filters are used to enhance the sky by balancing the luminosity of the sky to the luminosity of the terrain.
Firecrest ND grads are currently only available in soft edge grads, as they are the most versatile. Click here to learn more about the different varieties of graduated ND filters available from Formatt-Hitech.
Firecrest ND is a quantum leap improvement over all previous generation ND and IRND products and represents the technological state of the art in scientific light modification. These glass filters are hyper-neutral across the visible light spectrum and also remove more IR contamination than any other filter - making them IRND filters.
Firecrest is a radical departure in how ND filters are manufactured. Previous generation NDs were made by dying resin. Firecrest is not a dying process, it is a rare earth metal coating process that is applied directly to the glass through an electrolytic process.
On rectangular filters, the Firecrest coating is sandwiched between the finest Schott Superwite optical glass, increasing scratch resistance and longevity. Firecrest reduces all spectrums of light (UV, visible, near infrared and infrared) almost perfectly evenly.

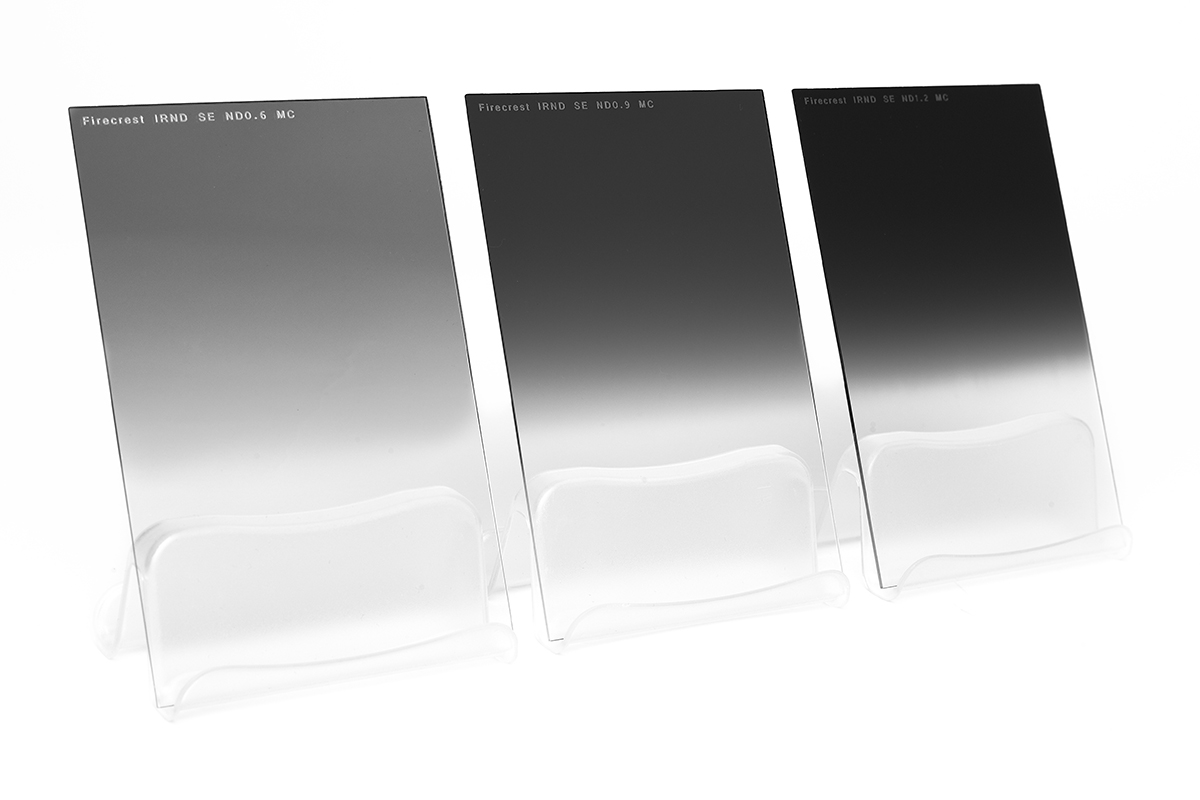

Firecrest ND Soft Edge Grad
Another industry first with Firecrest is the development of IRND grads. All Firecrest ND filters, including grads, block infrared radiation, technically making them IRND grads. Legacy graduated ND filters are manufactured from the traditional ND formulations originally developed for use with film and do not reduce infrared. Firecrest grads use the same Firecrest technology as their solid ND brothers. The result is a perfectly neutral graduated ND filter that pairs and stacks perfectly with even the highest densities of ND filter, and especially with other IRND filters.
Independent Test Data

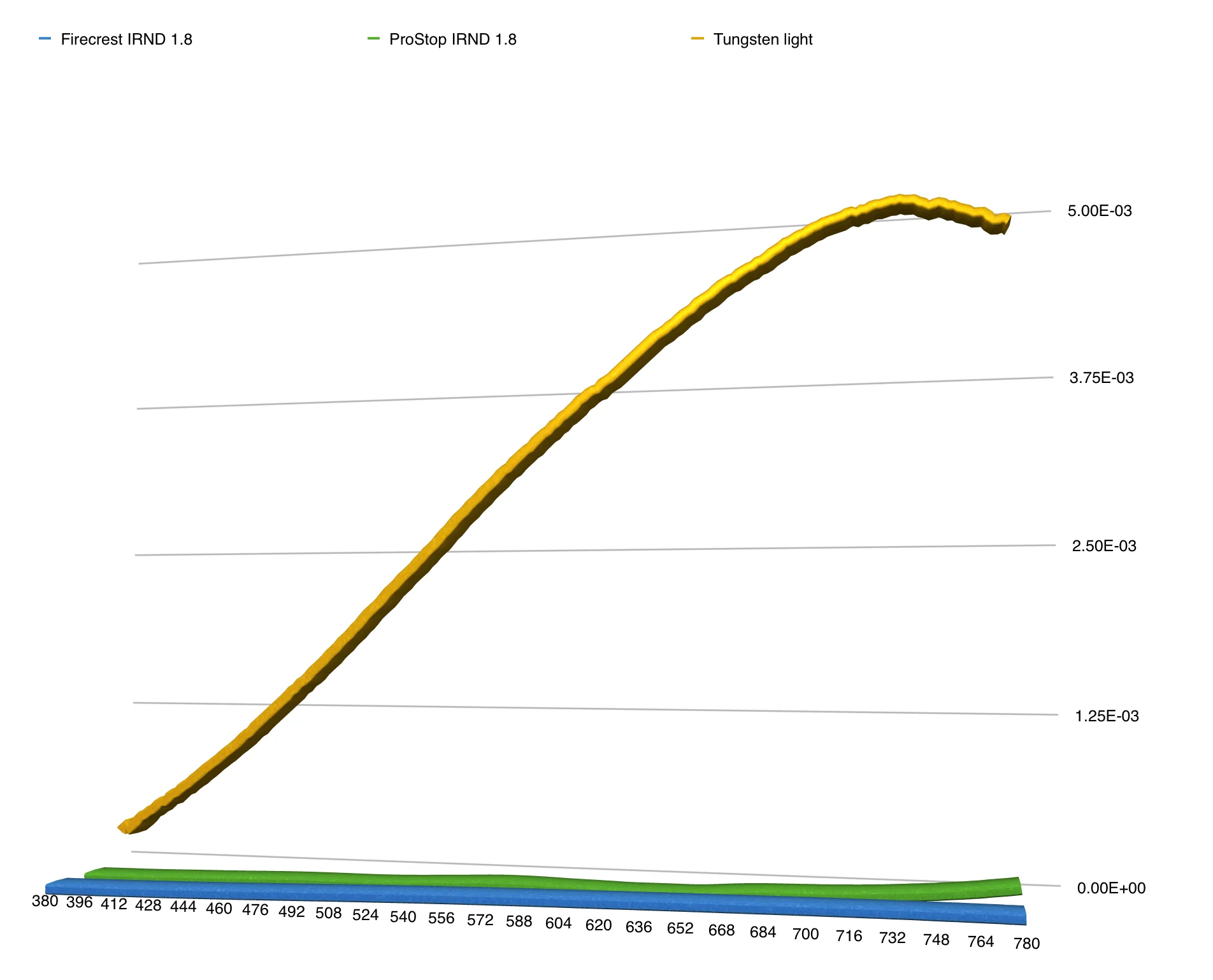

These graphs show test results from an independent test performed at The Academy of Motion Picture Arts and Sciences (AMPAS). The test measured the spectral power distribution of tungsten light reflected off a spectralon target made of barium sulfate using a Photo Research SpectraScan Model 705 spectroradiometer. The results were graphed according to their wavelength (in nanometers) along the X axis, versus radiance (in watts per steradian per meter squared) along the Y axis.
In the top graph, the yellow line represents the baseline tungsten light reading reflected off the barium sulfate target. This graph illustrates the excellent filtration properties of both the ProStop IRND (shown in green) and the Firecrest ND (shown in blue). Both filters appear nearly flat from this perspective.
The second graph emphasizes the differences between the two filters by removing the baseline tungsten reading and zooming-in on the Y axis. On closer inspection, the graph shows the ProStop IRND strongly attenuating the near-infrared spectrum before returning to neutral attenuation of the infrared spectrum around the 730nm mark. Firecrest (shown in blue) performs perfectly linearly in the visible light spectrum, before completely eliminating the infrared energy at around the 700nm mark. Compared to the ProStop IRND (which is the previous benchmark in IRND filtrations) the performance shown by Firecrest ND is nothing short of revolutionary. Firecrest ND truly is the future of ND filtration for digital sensors. Results in-the-field confirm the test data. The new Firecrest ND is amazingly neutral regardless of the camera make or model used.
Firecrest ND Soft Edge Grad 2mm Filter Specs
2mm Firecrest filters fit the full range of Formatt-Hitech aluminum holders as well as the Lucroit 100mm and 165mm holder systems. Sho
Firecrest filters are supplied in durable clam shell packaging.
1 - 5 Stops
67x85mm | 85x110mm | 100x125mm | 100x150mm | 150x170mm | 165x185mm
100mm grads are offered in both short 100x125 and tall 100x150 versions
